CARLI 2017+ FORD SUPER DUTY COMMUTER 2.0 (2.5"/3.5" LIFT) SUSPENSION SYSTEM

The 2020+ Ford F250/350 Platform is the same as the 17-19 but they lowered the front 1″ and the rear 1″-1.5″ depending on the cab configuration and 250/350 designation. For this reason, the only change to the suspension systems will be the stated lift height. The 2.5″ Lift Systems from the previous generation, 2017-19, are now 3.5″ for the 2020.

 The Commuter is the Leveling System with the Adjustable Track Bar Included and an option for the rear Progressive Add-A-Pack. A budget-friendly system with our Carli Signature Shock Tuning. This system was designed and built for the truck that keeps it on the pavement. A “Base Kit” SKU must be accompanied by the SKU of a Sway Bar Option and Progressive Add-a-Pack option to form a complete system.

If you don't add a rear Carli leaf spring option, certain 2020+ F-250s may need a taller rear block to sit level depending on the trim package. We recommend this block for trucks with a two piece driveshaft and this block for trucks with a one piece driveshaft.

This system fits Ford F-250 and Ford F-350 4x4 trucks from 2017, 2018, 2019, 2020, 2021, 2022.

SPECIFICATIONS

-2.5" Front Lift / 3.5" on 2020+ Trucks
-Custom coil spring rate
-Maintains steering geometry

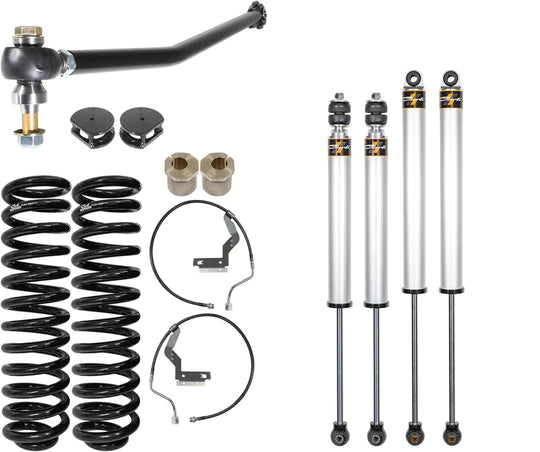

COMPONENTS

-Carli Front Ford Super Duty 2.5" Leveling Coils
-Carli Fox 2.0 IFP Front/Rear Custom Tuned Shock Package
-Carli 2017+ Ford Super Duty Adjustable Track Bar
-Carli 2017+ Ford Super Duty Front Stainless Braided Brake Lines
-Caster Correction Shims
-Carli Leveling Front Bump Stop Drops

OPTIONAL

-Carli 2017+ Ford Progressive Add-A-Packs & Rear Bump Drops
-Carli 2017+ Ford Full Progressive Rear Leaf Springs
-Carli Ford Super Duty Fabricated Radius Arms


APPLICATIONS

This kit will fit all 2017-2019 Ford F250/F350 Super Duty 4x4 pickups.

FITMENT GUIDE

Year Model Part Number

Fitment:
