20-UP JEEP GLADIATOR 2.5" STAGE 4 SUSPENSION SYSTEM
20-UP JEEP GLADIATOR 2.5" STAGE 4 SUSPENSION SYSTEM

20-UP JEEP GLADIATOR 2.5" STAGE 4 SUSPENSION SYSTEM

Regular price
$2,346.17
Regular price
$2,346.17
Sale price
$2,346.17
Unit price
per
Availability
Sold out

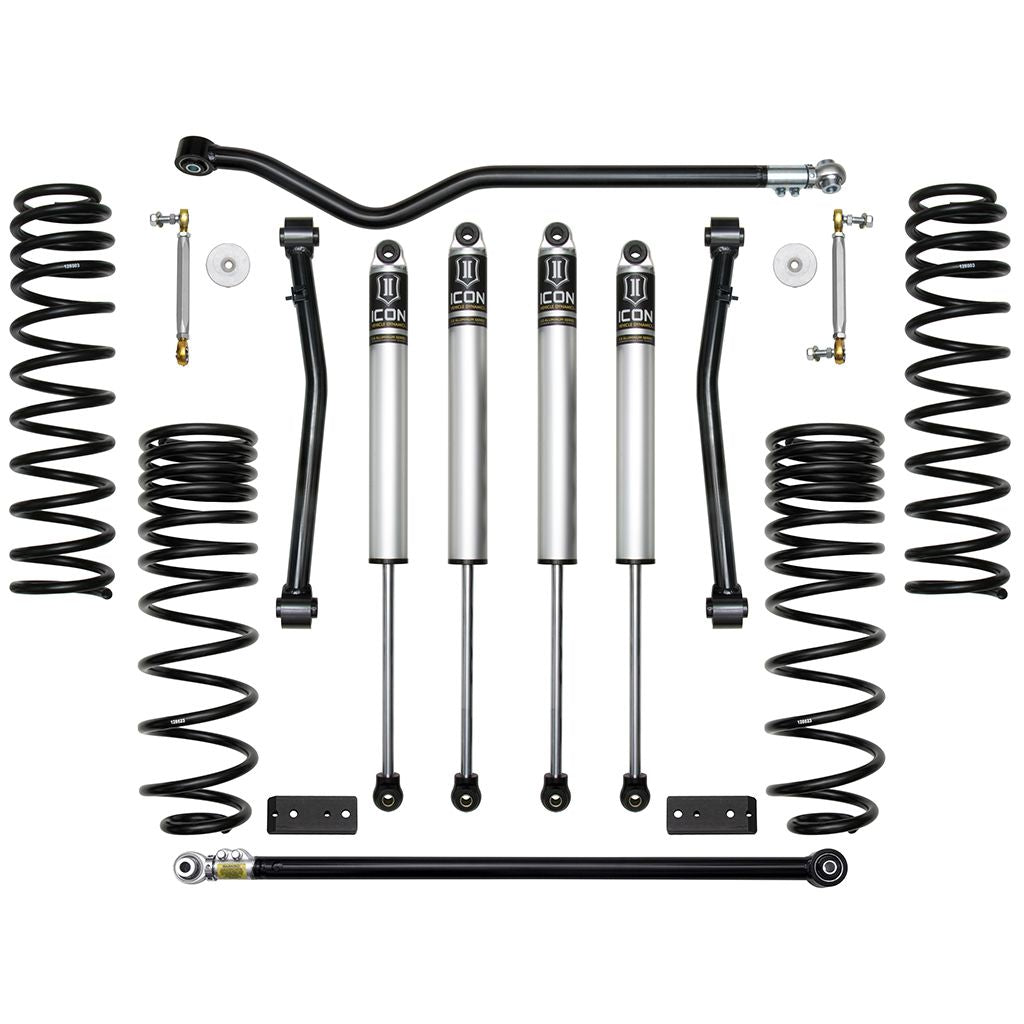

The Stage 4 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for drastically improving on-road ride quality and overall performance for the daily driven application that will see frequent, moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, a tubular steel fixed front lower link kit, billet front sway bar links, a triple-rate rear coil spring kit, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
  • 33% front, 23% rear increase in wheel travel
  • Improves on and off-road ride quality over stock
  • Front lower links included for caster angle correction and improved front end articulation
  • Dual rate front coil springs with lifetime guarantee against sagging/breakage
  • Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
  • 2.0 Aluminum Series shocks with vehicle specific valving
  • Front and rear track bars ensure proper alignment and improved articulation
  • 2.5" lift height
  • Adjustable, billet aluminum front sway bar links
  • 100% bolt-on system makes for an easy install
  • “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • Fits 35" tires (37" with extended bump stop spacer kit)

Additional Attributes:

  • GTIN:
  • 30: Yes
  • 2064: Steel
  • 2371: Yes
  • 3096: Black
  • 3097: Yes
  • 3390: Performance
  • 5520: 2.5
  • 5782: Open
  • 5783: Open
  • 7325: 2
  • 7326: 2
  • Add-On Part: 22071 - 20-UP JT EXTENDED BUMP STOP SPACER KIT

Packaging:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: x x inches

PDF:
